P2609 — Intake Air Heater System Performance — 6.7 Cummins (SCR / DEF)
Diagnostic reference for 6.7L Cummins SCR/DEF 2013–present.
What it means
P2609 is Intake Air Heater System Performance. On 6.7L Cummins SCR/DEF 2013–present the intake air heater is a grid heater (no glow plugs). The ECM has determined the grid heater system is not performing as expected when commanded.1
Most likely causes
- Grid heater relay or control circuit fault causing insufficient or no heater activation — Relay contacts degrade or control wiring has high resistance/open, so commanded grid heater current is low or absent. Verify relay operation and control signals during cold-start enable conditions; inspect heavy-gauge power and ground cables for corrosion/loosening.12
- Grid heater element degradation / high resistance or open circuit — Heater element ages, burns out, or develops high resistance, reducing current draw below expected performance threshold. Check element resistance and current draw against spec during heater-on window.1
- Low battery voltage / charging system weakness during heater operation — Grid heater draws high current; low system voltage during cranking/cold start reduces heater performance and can set performance code. Confirm battery state of health, charging voltage, and voltage drop at heater feed while commanded on.1
- Grid heater mounting hardware failure (bolt of death) affecting heater integrity — On affected model years the grid heater plate mounting bolt can deteriorate and loosen, leading to heater plate movement, poor electrical contact, and potential debris ingestion. Inspect grid heater plate bolts for corrosion/ breakage and secure mounting; look for signs of bolt loss into intake.2345
- Intake air temperature / ambient conditions causing extended heater demand beyond system capability — Very cold ambient with repeated heater cycles can expose marginal relays/cables/element. Confirm ambient temperature correlation and repeatability of code after cold soak.1
How to diagnose
- Confirm code P2609 is present and review freeze frame for coolant/intake air temperature and engine run time at set.
- Inspect battery voltage and charging system; load test batteries and check alternator output before condemning heater components.
- Command grid heater enable conditions (cold ambient, key-on/engine-off or cold idle) and monitor relay control signal and heater feed voltage at the grid heater connector.
- Measure voltage drop across relay contacts and heavy cables during heater operation; high drop indicates poor connection/corrosion.
- Check grid heater element resistance and in-service current draw against manufacturer spec; compare to known-good values.
- Visually inspect grid heater plate and mounting hardware for corrosion, loose/broken bolts, and signs of debris; do not remove intake components without proper procedures.
- Review recent repairs and service history for prior relay replacement or grid heater work; intermittent returns after relay swap suggest downstream issue.
- Clear code, perform cold soak drive cycle, and re-check for P2609 recurrence under similar ambient conditions.
Specs and test values
| Check | Normal reading | When to measure | Source |
|---|---|---|---|
| Battery and charging voltage | 12.6–12.7 V at rest when fully charged; about 13.5 V running | Engine off, then running with loads on | DieselHub |
Parts and tools you may need
- Digital multimeter
- DC clamp ammeter
- Battery load tester
- Scan tool with bi-directional control and live data
- Terminal cleaning supplies and dielectric grease
- Torque wrench and appropriate sockets for inspection (no disassembly of safety-critical systems)
Tools you’ll need
- digital multimeter — Measures grid heater element resistance and relay control/feed voltage to confirm electrical faults causing P2609.
- clamp meter — Checks in-service current draw of the grid heater to verify element degradation or insufficient heating performance.
- OBD-II scan tool — Confirms P2609, reviews freeze frame data, and commands grid heater enable conditions for live testing.
- battery load tester — Validates battery and charging system health before condemning heater components for low voltage during operation.
Rough cost and difficulty
| Likely repair | Parts | Shop labor | Who usually does it |
|---|---|---|---|
| Wiring or connector repair | $10–$100 | 1–4 hrs | DIY with tools and a manual |
| Intake grid heater relay | $40–$150 | 0.5–1 hrs | Easy DIY |
| Intake grid heater element | $100–$350 | 1–3 hrs | DIY with tools and a manual |
| Battery or charging-system repair | $150–$500 | 0.5–2 hrs | Easy DIY |
Typical US independent-shop figures; labor runs about $120–$180 per hour (dealers charge more). Confirm the diagnosis before buying parts.
When to see a pro
If grid heater mounting hardware is compromised or debris ingestion is suspected, stop diagnosis and have a qualified diesel technician inspect the intake tract. Do not attempt intake disassembly or high-current electrical repairs without proper training and safety controls.
Check for recalls
Recalls are tied to your truck’s VIN, so check yours directly: enter the VIN at NHTSA’s recall lookup. Open safety recalls are repaired free at a dealer.
Sources

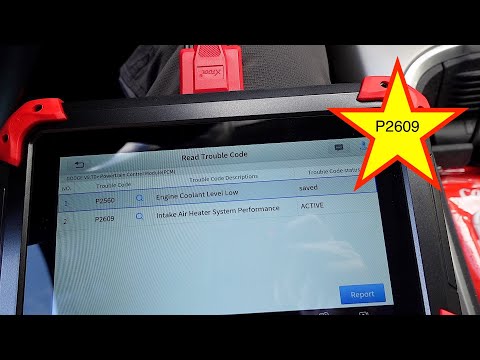

Repair videos: P2609 on the 6.7 Cummins '13+
