Diesel Trouble Codes

P0100 — Mass or Volume Air Flow Circuit Malfunction — 6.7 Powerstroke

Diagnostic reference for P0100 on 6.7 Powerstroke.

Updated October 15, 2026

What it means

The PCM detects a missing or out-of-range MAF sensor signal. Generic definition: MAF sensor signal is missing or out of range.1

Most likely causes

  1. Contaminated MAF sensing element — Oil, dirt or debris on the hot-wire/film changes the measured airflow and can drive the signal out of range.1
  2. MAF connector corrosion or poor terminal contact — Moisture or heat cycling degrades the connector, producing intermittent or low signal to the PCM.1
  3. MAF wiring chafing, opens or shorts — Wiring damage in the engine bay can cause the circuit to read out of range or missing.1
  4. Intake air leak or restriction between air filter and MAF — Unmetered air or a restriction upstream of the MAF alters the expected airflow relationship and can trigger a circuit-range fault alongside intake-related codes.2
  5. PCM software/calibration issue — Recall information notes PCM reprogramming in conjunction with mass or volume air flow circuit low input on this platform.3

How to diagnose

  1. Verify freeze-frame conditions and confirm P0100 is present with no other primary codes.
  2. Inspect intake tract from air filter to turbo inlet for loose clamps, cracked tubes, damaged air-filter housing, or a very dirty filter that could cause restriction or unmetered air.
  3. Visually inspect MAF sensor and connector for contamination, corrosion, oil film, or damaged terminals.
  4. Check MAF wiring harness for chafing, heat damage, and secure routing near hot or moving components.
  5. Review PCM calibration and outstanding service campaigns; recall data references PCM reprogramming related to mass or volume air flow circuit low input.
  6. If available, compare MAF grams/second readings at idle and during a controlled snap-throttle event to expected values for the platform; a missing or implausible signal supports a circuit fault.

Common mistake to avoid

Replacing the turbo before smoke-testing the intake. Boost leaks at intercooler boots, end tanks and clamps are a common cause of low power and underboost codes, and they mimic a failing turbo. Source: BD Diesel — 6.7L Power Stroke problems and real fixes.

Parts and tools you may need

Tools you’ll need

Rough cost and difficulty

Likely repairPartsShop laborWho usually does it
ECM/PCM software update—0.5–1.5 hrsShop
Wiring or connector repair$10–$1001–4 hrsDIY with tools and a manual
Intercooler boot, clamp or pipe repair$20–$2000.5–2 hrsEasy DIY
Mass airflow sensor$60–$3000.3–0.5 hrsEasy DIY

Typical US independent-shop figures; labor runs about $120–$180 per hour (dealers charge more). Confirm the diagnosis before buying parts.

When to see a pro

Refer to a qualified diesel technician for electrical testing, PCM updates, and any repair involving high-pressure fuel or intake systems. Do not attempt step-by-step repair of safety-critical systems. If the vehicle enters limp mode, exhibits loss of power, or shows additional codes, have it inspected promptly.

Check for recalls

Recalls are tied to your truck’s VIN, so check yours directly: enter the VIN at NHTSA’s recall lookup. Open safety recalls are repaired free at a dealer.

Sources

  1. Curated DTC seed — 6.7 Powerstroke (curated) ↩︎ ↩︎ ↩︎ ↩︎

  2. Curated DTC seed — 6.7 Powerstroke (curated) ↩︎

  3. NHTSA owner report 11453497 ↩︎

Repair videos: P0100 on the 6.7 Power Stroke

Third-party videos, not ours — picked for this engine. Confirm anything against the factory service information for your truck.

**STOP** DO NOT REPLACE YOUR MASS AIR FLOW SENSOR | Eng.-light ON | 2017-19 Ford F250 F350 F450 F550 — PowerStroke Tech Talk w/ARod · 157K views

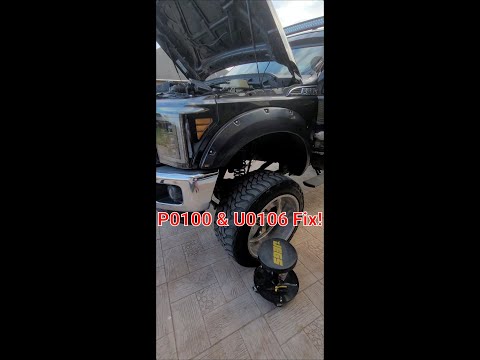

11-16 Ford F250 - P0100 & U0106 codes - NOx Module Locations — Tx Streets · 12K views
